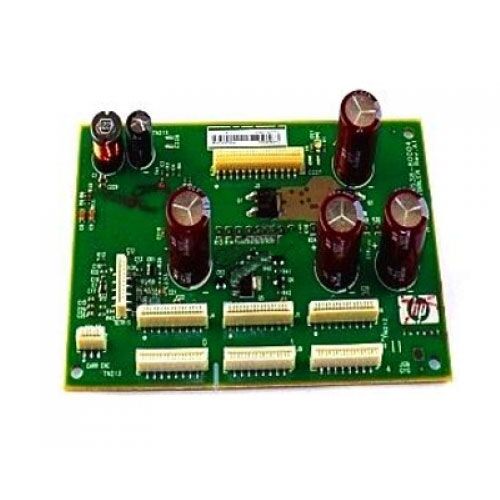

Carriage PCA Board For HP Designjet T770 T790 T795 T1120 T1300 T2300 CK837-67005

Description

Carriage PCA Board For HP Designjet T770 T790 T795 T1120 T620 T1300 T2300 CK837-67005

1. This Carriage PCA Designjet T2300 T790 T795 Z5400 (Printed Circuit Assembly) Board is a critical electronic component.
2. These components manages communication between the printer’s main board and carriage.
3. Thsi Board Can Installed directly on the carriage unit, this board processes signals for printhead firing, sensor feedback, and ink system functions during printing tasks.
4. It works in real-time, interpreting instructions from the formatter and relaying commands to the individual printheads for precise ink deposition.
5. The PCA board includes connectors for printhead interface, carriage motor control, and ribbon cables linking the carriage to the main system.
6. Any damage or malfunction in the PCA board can result in carriage errors, missing colors, or failure to recognize printheads.
7. It supports inkjet technology by regulating voltage and timing for each printhead’s nozzle, ensuring proper droplet formation and placement.
8. CK837-67005 is built with high-quality components designed to withstand heat, electrical interference.

Replacing the board involves disassembling the carriage, careful handling of flex cables, and updating firmware to sync with the new hardware.
