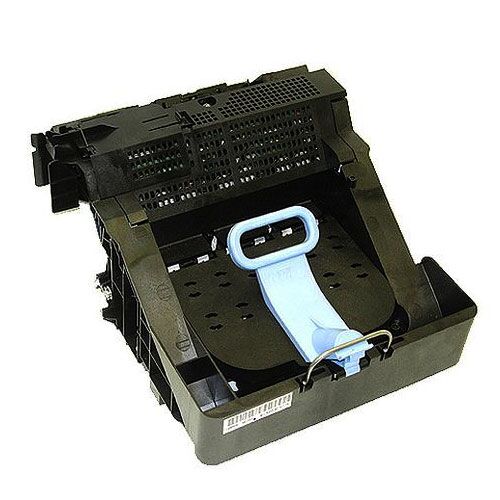

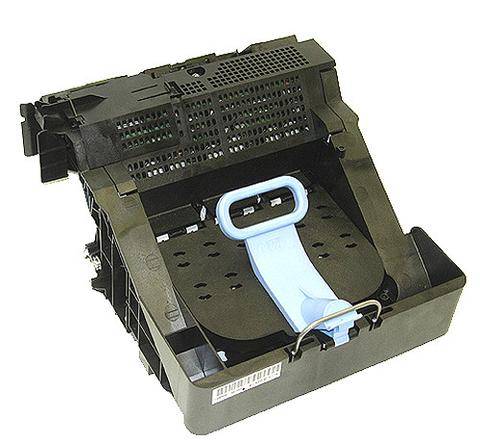

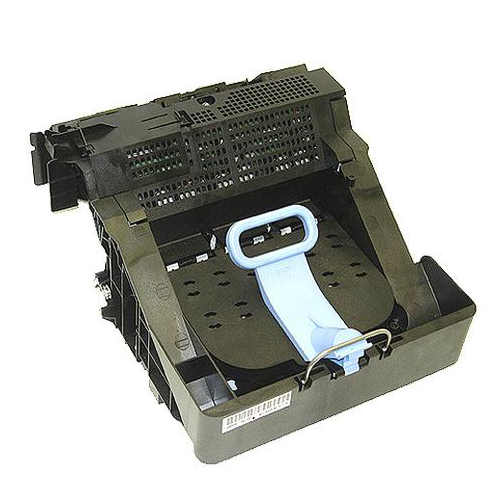

Carriage assembly Without Cutter for HP DesignJet T770 T790 T1200 T1300 T2300 CH538-67044 CR647-67025

Description

Carriage assembly Without Cutter for HP DesignJet T770 T790 T1200 T1300 T2300 CH538-67044 CR647-67025

1. The carriage assembly holds the printheads and moves left to right on the paper to  delivering ink with high accuracy for  printing.
2. It is built with high-strength plastic and aluminum, ensuring durability while maintaining printer’s during print operations.
3. The assembly includes encoder sensors, alignment wheels, and ink line connectors to manage ink delivery and positioning with reliable, professional mak.
4. Designed for speed and quality, the carriage glides smoothly using a belt-driven system controlled by a stepper motor for accuracy.
5. Optical sensors on the carriage read encoder strips, helping track movement and detect any misalignment during operation.

During startup or calibration, the carriage assembly aligns printheads and checks for nozzle performance, ensuring print quality and sharp results.

In maintenance cycles, the assembly docks at the service station to clean printheads and cap them to prevent ink drying.

Wear and tear can affect belt tension or sensor alignment, requiring periodic inspection and maintenance to prevent print defects.

Firmware controls the carriage speed and direction, adjusting line based on print mode and media type for optimized performance.

The design ensures minimal sound, supporting high-resolution output even at fast speeds, ideal for perticular model engineering applications.

Advanced models may feature upgraded sensors and motion systems to reducing operational noise while improving work.

Replacing a faulty carriage requires disassembly, installation, allignment, and sometimes firmware updates for full functionality
